Mechanical Design






Achray Photonics provides a wide range of mechanical design services. All our drawings are CAD generated and provided in both soft and hard version. Our design expertise covers following areas:

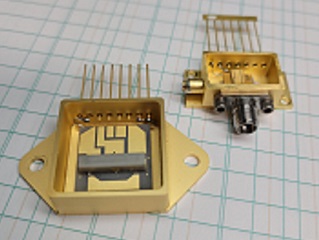

  1. Hermetic packaging solutions for various opto-electronic components
  2. Packaging of waveguide devices
  3. Fiber alignment stations
  4. Fiber Array alignment jigs
  5. Various assembly fixtures

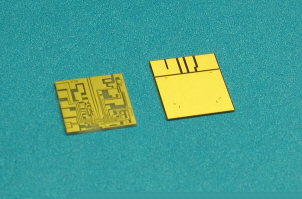

  6. Ceramic hybrids
  7. Thermally compensated solutions
  8. Micro-optical systems
  9. Packaging solutions for MEMS
  10. Packaging solutions for FBGs
